Forged Brass Gate Valves - IS 13144

BACK

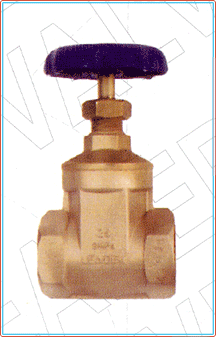

FORGED BRASS GATE VALVES

SPECIFICATIONS

SCREWED IN BONNET, INSIDE SCREW, NON-RISING STEM, INTEGRAL SEAT, SOLID WEDGE, SCREWED FEMALE PARALLEL THREADS TO IS 554, OTHER FORMS OF THREADS CAN BE PROVIDED ON REQUEST.

WORKING PRESSURE

2Mpa UP TO 45Â°C

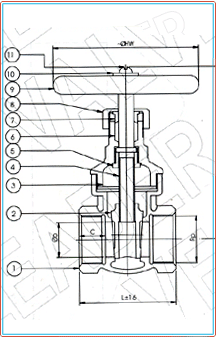

**Standard Material Combination**
S.No.	PartName	GUN METAL
1	BODY	FORGED BRASS GR. FLB OF IS 6912
2	WEDGE	FORGED BRASS GR. FLB OF IS 6912
3	BONNET	FORGED BRASS GR. FLB OF IS 6912
4	STEM	FORGED BRASS GR. FLB OF IS 6912
5	SEAT NUT	FORGED BRASS Gr. FHTB1 (OR) Gr. FLB OF IS 6012
6	GLAND PACKING	HEMP & JUTE / ASBESTOS IS 5414 / IS 4587
7	GLAND	FORGED BRASSGR. FHTB1 (OR) GR. FLB OF IS 6912
8	GLAND NUT	FORGED BRASSGR. FHTB1 (OR) GR. FLB OF IS 6912
9	HANDWHEEL	C.I / STEEL (PVC COATED) FG200 OF IS 210 / ANY GRADE
10	WASHER	STEEL ANY GRADE
11	SET SCREW	STEEL ANY GRADE

NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
