CAST STEEL GATE VALVES - API 600 BACK

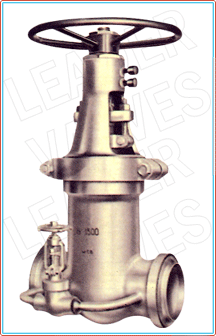

CAST STEEL GATE VALVES
Outside Screw & Yoke Type in
Sizes 1½" to 36" Class-150,    Sizes 1½" to 24" Class-300
Sizes 1½" to 36" Class-150,    Sizes 1½" to 24" Class-300
Sizes 1½" to 36" Class-150,    Sizes 1½" to 24" Class-300
On 12" & Smaller valves yoke is cast integral with bonnet



Trim Material Combination
TrimNo Seat Ring Face Part No.2 Wedge Seat Face Part No.3 Stem Part No.4 Backseat Bush Part No.7 Lantern Ring Part No.9
1 F6a/13%Cr. F6a/13%Cr. F6a/AIS1410 F6a/AIS1410 F6a/AIS1410
2 F304 F304 F304/AIS1304 F304/AIS1304 F304/AIS1304
5 STELLITE STELLITE F6a/AIS1410 F6a/AIS1410 F6a/AIS1410
6 Cu-Ni F6a/13%Cr. F6a/AIS1410 F6a/AIS1410 F6a/AIS1410
8 STELLITE F6a/13%Cr. F6a/AIS1410 F6a/AIS1410 F6a/AIS1410
9 MONEL MONEL MONEL MONEL MONEL
10 F316 F316 F316/AIS1316 F316/AIS1316 F316/AIS1316
13 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20

OTHER TRIM COMBINATION OF API600 CAN BE PROVIDED ON REQUEST. LANTERN RING CAN BE PROVIDED IF REQUIRED EXCEPT FOR CL-150

Thrust Bearing
Class150-DN250 & above  Class300-DN200 & above  Class600-DN100 & above
Class900-DN100 & above  Class1500-DN80 & above  Class2500-DN80 & above

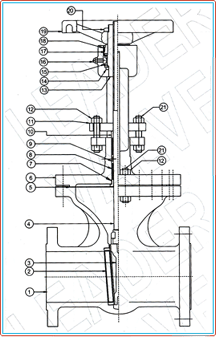

Standard Material Combination
S.No. PartName Carbon Steel to ASTM type WCB Carbon Steel to ASTM type LCB Alloy steel to ASTM type WC1 Alloy steel to ASTM type WC6 Alloy steel to ASTM type WC9 Alloy steel to ASTM type C12 Alloy steel to ASTM type C5 Stainless steel to ASTM type CF8 Stainless steel to ASTM type CF3 Stainless steel to ASTM type CF8M Stainless steel to ASTM type CF3M
1 BODY A212 WCB A352 LCB A217 WC1 A217 WC6 A217 WC9 A217 C12 A217 C5 A351 CF8 A351 CF3 A351 CF8M A351 CF3M
5 GASKET Stainless Steel + Graphoil Stainless Steel + Graphoil Stainless Steel + Graphoil Stainless Steel + Graphoil Stanless steel + Graphoil Stainless Steel + Graphoil Stainless Steel + Graphoil Stainless Steel + Graphoil Stainless steel + Graphoil Stainless Steel + Graphoil Stainless steel + Graphoil
6 BONNET A212 WCB A352 LCB A217 WC1 A217 WC6 A217 WC9 A217 C12 A217 C5 A351 CF8 A351 CF3 A351 CF8M A351 CF3M
8 GLAND PACKING To suit service conditions To suit service conditions To suit service conditions To suit service conditions To suit service condition To siot service conditions To suit service conditions To suit service conditions To suit service conditions to suit service conditions To suit service conditions
10 GLAND A182 F6a A182 F6a A182 F6a A182 F6a A182 F6a A182 F6a A182 F6a F-304 F-304L   F-316L
11 GLAND FLANGE A212 WCB A212 WCB A217 WC1 A217 WC6 A217 WC9 A217 C12 A217 C5 A351 CF8 A351 CF3 A351 CF8M A351 CF3M
12 NUTS A194 2H A194 4 A194 4 A194 4 A194 4 A194 4 A194 4 A194 8 A194 8 A194 8 A194 8
13 YOKE SLEEVE Al. Br. BS1400 AB2C or Ni-resist to A439 D2 Al. Br. BS1400 AB2C or Ni-resist to A439 D2 Al. Br. BS1400 AB2C or Ni-resist to A439 D2 Al. Br. BS1400 AB2C or Ni-resist to A439 D2 Al. Br. BS1400 AB2C or Ni-resist to A439 D2 Al. Br. BS1400 AB2C or Ni-resist to A439 D2 Al. Br. BS1400 AB2C or Ni-resist to A439 D2 Al. Br. BS1400 AB2C or Ni-resist to A439 D2 Al. Br. BS1400 AB2C or Ni-resist to A439 D2 Al. Br. BS1400 AB2C or Ni-resist to A439 D2 Al. Br. BS1400 AB2C or Ni-resist to A439 D2
14 OIL SEAL EPDMA / BUNA 'N' RUBBER EPDMA / BUNA 'N' RUBBER EPDMA / BUNA 'N' RUBBER EPDMA / BUNA 'N' RUBBER EPDM/BUNA 'N' RUBBER EPDM/BUNA 'N' RUBBER EPDMA / BUNA 'N' RUBBER EPDMA / BUNA 'N' RUBBER EPDMA / BUNA 'N' RUBBER EPDMA / BUNA 'N' RUBBER EPDMA / BUNA 'N' RUBBER
15 THRUST BEARING SKF OR EQV. SKF OR EQV. SKF OR EQV. SKF OR EQV. SKF OR EQV. SKF OR EQV. SKF OR EQV. SKF OR EQV. SKF OR EQV. SKF OR EQV. SKF OR EQV.
16 LUBRICATOR STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL
17 YOKE SLEEVE RETAINING NUT STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL
18 LOCKING SCREW STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL
19 HANDWHEEL DI A536 80-55-D6 or MI 1S 2108 BM290 DI A536 80-55-D6 or MI 1S 2108 BM290 DI A536 80-55-D6 or MI 1S 2108 BM290 DI A536 80-55-D6 or MI 1S 2108 BM290 DI A536 80-55-D6 or MI 1S 2108 BM290 DI A536 80-55-D6 or MI 1S 2108 BM290 DI A536 80-55-D6 or MI 1S 2108 BM290 DI A536 80-55-D6 or MI 1S 2108 BM290 DI A536 80-55-D6 or MI 1S 2108 BM290 DI A536 80-55-D6 or MI 1S 2108 BM290 DI A536 80-55-D6 or MI 1S 2108 BM290
20 HANDWHEEL RETAINING NUT STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL
21 STUDS A307B A320 L7 A307 B A307 B A 307B A307 B A307 B A193 B8 A193 B8 A193 B8 A193 B8
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.



.
