Cu-Ally Gate Valves - BS 5154/B PN 20 BACK

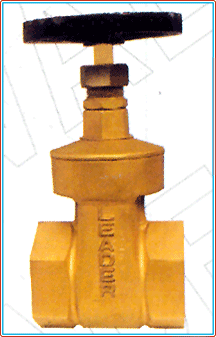

Cu-Ally GATE VALVES
SPECIFICATIONS
SCREWED IN BONNET, INSIDE SCREW, NON-RISING STEM, INTEGRAL SEAT, SOLID WEDGE, SCREWED FEMALE BSP, PARALLER THREADS TO BS 21, OTHER FORMS OF THREADS CAN BE PROVIDED ON REQUEST.









Standard Material Combination
S.No. PartName GUN METAL FORGED BRASS
1 BODY G.M TO EN 1982 Gr. CC491K C.I TO EN 1561 Gr. GJL200
2 WEDGE G.M. TO EN 1982 Gr. CC491K S.S TO BS970 Gr.410 S21/ASTM A182 F6a OR Their Eq.
3 BONNET G.M. TO EN 1982 Gr. CC491K OR BRASS TO CZ 122 OF BS 2872 S.S TO BS970 Gr.410 S21/ASTM A182 F6a OR Their Eq.
4 STEM BRASS TO CZ 224 OF BS 2872 / 2874 C.I to EN 1561 Gr. GJL200
5 STUFFING BOX G.M. TO EN 1982 Gr. CC491K OR BRASS TO CZ 122 OF BS 2872 / 2874 -
6 GLAND PACKING TO SUIT SERVICE CONDITIONS TO SUIT SERVICE CONDITIONS
7 GLAND BRASS TO CS 224 OF BS 2872/2874 CZ 132 OR CZ 122 OF BS2872 / 2874
8 GLAND NUT G.M. TO EN 1982 Gr. CC491K OR BRASS TO CZ 122 OF BS 2872 / 2874 CZ 132 OR CZ 122 OF BS2872 / 2874
9 HANDWHEEL C.I. / STEEL C.I. / STEEL
10 WASHER CARBON STEEL CARBON STEEL
11 SET SCREW CARBON STEEL CARBON STEEL
12 STEM NUT - BRASS TO CZ 132 OF BS 2872/ 2874
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
