Cu-Ally Gate Valves - IS 778 CLASS 1 & 2 BACK

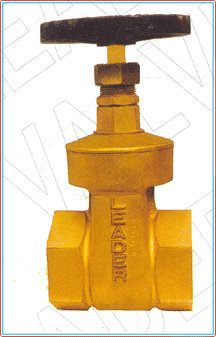

Cu-Ally GATE VALVES
SPECIFICATIONS
SCREWED IN BONNET, INSIDE SCREW NON- RISING STEM,  INTEGRAL SEAT, SOLID WEDGE, SCREWED FEMALE PARALLEL THERADS TO IS 554. OTHER FORMS OF THREADS CAN BE PROVIDED ON REQUEST.

CLASS RATING                                    WORKING PRESSURE
CLASS-1                                                   1.0 MPa UP TO 45°C
CLASS-2                                                   1.6 MPa UP TO 45°C

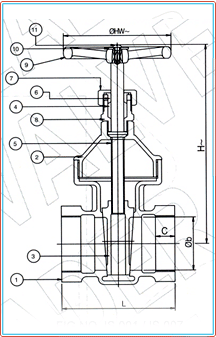

Standard Material Combination
S.No. PartName GUN METAL
1 BODY LEADED TIN BRONZE LTB 2 OF IS 318
2 BONNET LEADED TIN BRONZE/ FOR GED BRASS LTB2 OF IS 318 / FLB OF IS 6912
3 WEDGE LEADED TIN BRONZE/ FOR GED BRASS LTB2 OF IS 318 / FLB OF IS 6912
4 GLAND PACKING HEMP & JUTE/ ASBESTOS IS 5414/IS 4687
5 STEM BRASS ROD FHTB1 OF IS 6912
6 GLAND LEADED TIN BRONZE / BRASS LTB2 OF 318/ FLB OF IS 6912
7 GLAND NUT LEADED TIN BRONZE / BRASS LTB2 OF 318/ FLB OF IS 6912
8 STUFFING BOX LEADED TIN BRONZE / BRASS LTB2 OF 318/ FLB OF IS 6912
9 HANDWHEEL C.I / STEEL FG200 OF IS 210 / ANY GRADE
10 WASHER CARBON STEEL ANY GRADE
11 SET SCREW CARBON STEEL ANY GRADE
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
