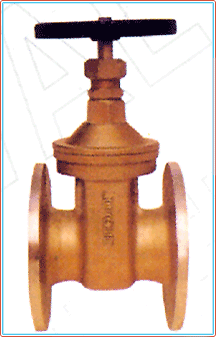

Cu-Ally Gate Valves - BS 5154/B PN 16, CLASS 100

BACK

Cu-Ally GATE VALVES

SPECIFICATIONS

SCREWED IN BONNET, INSIDE SCREW, NON-RISING STEM, INTEGRAL SEAT, SOLID WEDGE, FLEDGED ENDS AS PER BS 4504 PN 16/BS 10 TABLEE.

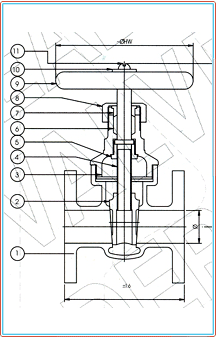

**Standard Material Combination**
S.No.	PartName	GUN METAL
1	BODY	G.M. EN 1982 Gr. CC491K
2	WEDGE	G.M. EN 1982 Gr. CC491K
3	BONNET	G.M / BRASS EN 1982 Gr. CC491K/ BS 2872 CZ 122
4	STEM	BRASS ROD CZ 114 OF BS 2872 OR 2874
5	STEM NUT	BRASS CZ 122 OF BS 2872 OR 2874
6	GLAND PACKING	TO SUIT SERVICE CONDITIONS
7	GLAND	BRASS CZ 122 OF BS 2872 OR 2874
8	GLAND NUT	G.M./BRASS EN 1982 Gr. CC491K / CZ 122 OF BS 2872 OR 2874
9	HANDWHEEL	C.I / STEEL EN 1561 Gr. GJL200 / ANY GRADE
10	WASHER	CARBON STEEL ANY GRADE
11	SET SCREW	CARBON STEEL ANY GRADE

NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
