Cast Iron Gate Valves Flanged

BACK

Design	:	Cast Iron Gate Valve Flanged Ends (Undrilled) with non rising stem Dimensions matched to IS:778-Class-II Available in : Bronze seat with forged Brass stem. (Valves with Drilled Flanges may be supplied on demand)

Range	:	15mm to 100mm.

Operation Marking	: :	Hand Wheel Operated. One side of body "ALTO" & "Size" Other side of the body "Tested 20kg/cm2".

Utility	:	Fuel oils, kerosene oils, compressed air, gases, low pressure steam, viscous fluids & hydraulic (Water, Oil etc) installations.

Temp. Range Testing	: :	10° C to 200 ° C Hydraulically

Test Pressure				Max C.W.P
Body		Seat		Body/Seat
300 PSI	20 Kg/cm2	300 PSI	20 Kg/cm2	150 PSI	10 Kg/cm2

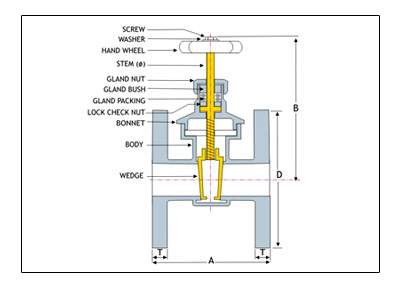

DIMENSIONS : (in mm)
Size (in mm)	A	B*	D	T	Ø
15	72	97	95	6	8
20	76	116	105	6	9
25	90	127	115	8	10
32	100	137	140	8	10
40	110	158	150	9	12
50	120	175	165	11	12
65	140	220	185	13	14
80	150	235	200	13	16
100	190	285	220	16	20

Tolerance : ±1.5 mm in 'A', ±1 mm in 'D',
-0 mm in 'T' & ø

*Approx

MATERIALS :
Components	Material	Specification
Body, Bonnet, Gland Nut & Hand Wheel	Cast Iron	IS : 210 Gr. FG-200
Wedge (Seat)	Bronze	LTB-2 IS : 318-1981
Stem	Brass	IS : 3488
Gland Packing	Asbestos Yarn	IS : 4687-1980
Screw/Bolt, Nut & Washer	Mild Steel	IS : 226
