Slimseal Butterfly Valves

BACK

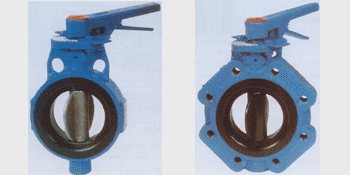

AIL SLIMSEAL is a Wafer type Butterfly valve, with an integrally molded elastomer body liner. Designed to outperform loose liners , SLIM Seal's elastomer liner is molded directly in the body bore and vulcanized in-situ, making it last the entire life of the valve. The result - a valve that requires no form of maintenance. A perfect FIT AND FORGET valve.

AIL SLIMSEAL is available in different combinations of body, liner and disc materials to suit a wide range of line fluids, a size range of 50 to 600 mm, and a pressure rating up to PN 16. This permits use in a wide range of applications making AIL SLIMSEAL a truly versatile valve.


Product Name Figure No. Size Range Body Material Disc Lining
Slimseal Butterfly Valve
 		 IBF2JS PN16 2" - 12" Cast Iron Cast Iron Nitrile
  IBF3JS PN16 2" - 12" Cast Iron Cast Iron EPDM
  IBF2RS PN16 2" - 12" Cast Iron SS304 Nitrile
  IBF3RS PN16 2" - 12" Cast Iron SS304 EPDM
  IBF2SS PN16 2" - 12" Cast Iron SS316 Nitrile
  IBF3SS PN16 2" - 12" Cast Iron SS316 EPDM
Gear Operated
 		 IBG2JS PN16 2" - 12" Cast Iron Cast Iron Nitrile

Torque Data

Valve Size (mm) Torque (nm)
50 12
65 20
80 27
100 41
125 62
150 93
200 182
250 279
300 318
