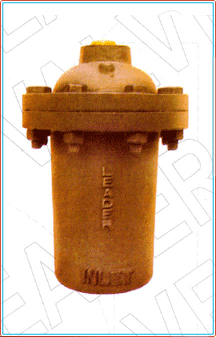

CAST IRON VERTICAL INVERTED BUCKET TYPE STEAM TRAPS

BACK




SPECIFICATIONS
VERTICALLY INVERTED BUCKET TYPE, STAINLESS STEEL BUCKET, SCREWED FEMALE BSP TAPER THREADS TO BS 21 OR FLANGED ENDS AS PER BS 10 TABLE F-AS APPLICABLE, OTHER TYPE OF END DETAIS CAN BE PROVIDED ON REQUEST.

CERTIFICATE
ITEMS CAN BE SUPPLIED WITH CERTIFICATE OF MANUFACTURE AND TEST ON FORM III-C ASPER REGULATION 269 OF IBR.

Standard Material Combination
S.No. PartName CAST IRON
1 BODY CASR IRON IBR CLAUSE 86 TO 93 Gr.A
2 BUCKET STAINLESS STEEL TYPE 304
3 VALUE LEVER STAINLESS STEEL TYPE 304
4 PIN STAINLESS STEEL TYPE 304
5 BALL STAINLESS STEEL TYPE 304
6 GASKET STEAM JOINTING IS 2712 Gr. W/1
7 SEAT STAINLESS STEEL TYPE 304
8 COVER CAST IRON IBR CLAUSE 86 TO 93 Gr.A
10 PLUG BRONZE IBR CLAUSE 282 (a) (iv) Gr.A
11 BOLTS & NUTS CARBON STEEL BS 916
12 GUIDE PINS PLATE STAINLESS STEEL TYPE 304
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
