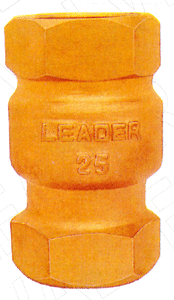

Cu-ALLOY VERTICAL CHECK VALVES-BS 5154/B PN 16

BACK





SPECIFICATIONS
INTEGRAL SEAT, SCREWED FEMALE BSP PARALLEL THREADS TO BS 21, OTHER FORMS OF THREADS CAN BE PROVIDED ON REQUEST.

PRESSURE-TEMPERATURE RATINGS
METAL TO METAL SEAT
16 bar AT - 10°C TO 100°C
7 bar AT-180°C
RESILIENT SEAT (RESTRICTED TO MAX. TEMP. OF 100°C)
16 bar FROM-10°C TO 100°C






Standard Material Combination
S.No. PartName GUN METAL
1 BODY G.M EN 1982 Gr. CC491K
2 DISC GUIDE G.M. BE 1400 LG2EN 1982 Gr. CC491K
3 DISC G.M EN 1982 Gr. CC491K
4 O-RING RUBBER IS 5192
5 SPRING Phos. BRONZE / STAINLESS STEEL IS 7608/ BS 2056 EN 5BA
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
