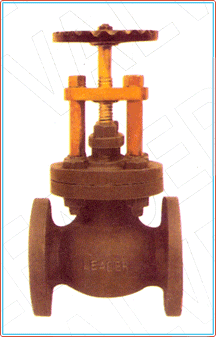

CAST IRON GLOBE STEAM STOP VALVES

BACK



SPECIFICATINS
STRAIGHT PATTERN, BOLTED BONNET, RISING STEM, CROSSHEAD & PILLAR TYPE DESIGN, FLANGED ENDS AS PER BS TABLE F

CERTIFICATE
ITEMS CAN BE SUPPLIED WITH CERTIFICATE OF MANUFACTURE AND TEST ON FORM III-C AS PER REGULATION 269 OF IBR.

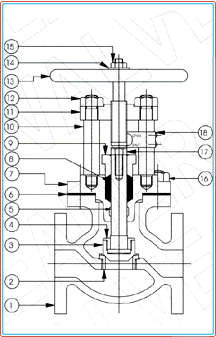

Standard Material Combination
S.No. PartName CAST IRON
1 BODY CAST IRON IBR CLUSE 86 TO 93 Gr.A
2 BODY SEAT RING 13% Cr. STEEL ASTM A 182 Gr. F6a its Eq.
3 DISC 13% Cr. STEEL ASTM A 182 Gr. F6a its Eq.
4 DISC NUT BRONZE IBR CLAUSE 282 (a) (IV) Gr. B
5 STEM 13% Cr. STEEL ASTM A 182 Gr. F6a its Eq.
6 GASKET C.A.F IS 2712 Gr. W/1
7 BONNET CAST IRON IBR CLAUSE 86 TO 93 Gr. A
8 GLAND PACKING GRAPHITED ASBESATOS
9 GLAND BRONZE IBR CLAUSE 282 (a) (IV) Gr.B
10 PILLAR CARBON STEEL IS2062 Gr. B
11 CROSS HEAD CARBON STEEL IS 2061 Gr. B
12 NUT FOR PILLAR CARBON STEEL BS 916
13 HANDWHEEL CAST IRON IS 210 Gr. FG200
14 WASHER CARBON STEEL
15 NUT FOR HANDWHEEL CARBON STEEL BS 916
16 BOLTS & NUTS CARBON STEEL BS 916
17 STUDS & NUTS FOR GLAND CARBON STEEL BS 916
18 INDICATOR BRASS SHEET
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
