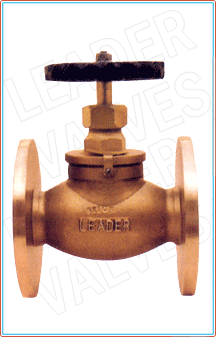

BRONZE GLOBE STEAM STOP VALVES

BACK



SPECIFICATIONS
SCREWED IN BONNET, INSIDE SCREW RISING STEM, RENEWABLE SEAT & DISC, FLANGED ENDS AS PER BS10 TABLEH

WORKING PRESSURE
ITEMS CAN BE SUPPLIED WITH CERTIFICATE OF MANUFACTURE AND TEST ON FORM III-C AS PER RAGULATION 269 OF IBR.

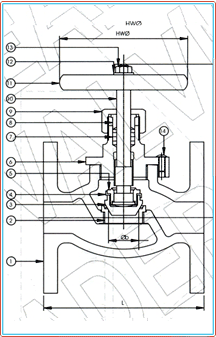

Standard Material Combination
S.No. PartName BRONZE
1 BODY BRONZE IBR CLAUSE 282 (a) (iv) Gr.B
2 BODY SEAT RING 13% Cr. STEEL (HB 250 Min.) ASTM A182 Gr. F6a or its Eq.
3 DISC 13% Cr. STEEL (HB 250 Min.) ASTM A182 Gr. F6a or its Eq.
4 LOCKING WASHER S.S TYPE 304
5 CHECK NUT BRONZE IBR CLAUSE 282 (a) (iv) Gr. B
6 BONNET BRONZE IBR CLAUSE 282 (a) (iv) Gr. B
7 GLAND PACKING GRAPHITED ASBESTOS
8 GLAND BRONZE IBR CLAUSE 282 (A) (IV) Gr. B
9 GLAND NUT BRONZE IBR CLAUSE 282 (a) (iv) Gr. B
10 STEM 13% Cr. STEEL (HB 200 Min.) ASTM A182 Gr. F6a or its Eq.
11 HANDWHEEL C.I IS 210 Gr. FG 200
12 WASHER CARBON STEEL ANY GRADE
13 NUT FOR HANDWHEEL CARBON STEEL BS 916
14 LOCKING SCREW CARBON STEEL ANY GRADE
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
