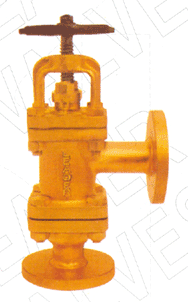

BRONZE ACCESSIBLE FEED CHECK VALVES

BACK





SPECIFICATIONS
ACCESSIBLE FEED CHECK VALVE WITH RENEWABLE SEAT & DISC, FLANGES AS PER BS 10 TABLE H.

CERTIFICATE
ITEMS CAN BE SUPPLIED WITH CERTIFICATE OF MANUFACTURE AND TEST ON FORM III-C AS PER REGULATIONS 269 OF IBR.


Standard Material Combination
S.No. PartName BRONZE
1 VALVE INLET END BRONZE IBR CLAUSE282 (a) (iv) Gr.B
2 CHECK VALVE GUIDE BRONZE IBR CLAUSE282 (a) (iv) Gr.B
3 CHECK VALVE SEAT RING LUMINA Ni, Cu. ALLOY
4 GASKET C.A.F IS 2712 Gr. W1
5 CHECK VALVE DISC LUMINA Ni, Cu. ALLOY
6 BODY SEAT RING LUMINA Ni, Cu. ALLOY
7 VALVE DISC LUMINA Ni, Cu ALLOY
8 STEM NUT BRONZE IBR CLAUSE282 (a) (iv) Gr.B
9 BODY BRONZE IBR CLAUSE282 (a) (iv) Gr.B
11 GLAND PACKING GRAPHITED ASBESTOS
12 GLAND BRONZE IBR CLAUSE282 (a) (iv) Gr.B
13 BONNET BRONZE IBR CLAUSE282 (a) (iv) Gr.B
14 STEM 13% Cr. STAINLESS STEEL ASTM A182 Gr. F6a or its Eq.
15 HANDWHEEL CAST IRON IS 210 Gr. FG 200
16 WASHGER CARBON STEEL
17 NUT FOR HANDWHEEL CARBON STEEL BS 916
18 NUTS CARBON STEEL BS 916
18 BOLTS CARBON STEEL BS 916
21 DRAIN PLUG BRONZE IBR CLAUSE282 (a) (iv) Gr.B
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
