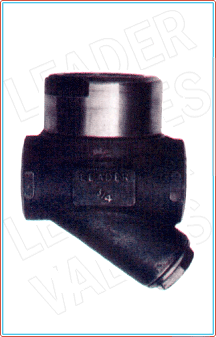

STEEL THERMODYNAMIC STEAM TRAPS

BACK




SPECIFICATIONS
STELL THERMODYNAMIC TYPE STEAM TRAP WITH STRAINER, SCREWED FEMALE BSP TAPER THREADS TO BS21 /SOCKET WELDED ENDS TO ASME B 16.11. OTHER FORMS OF THREADS CAN BE PROVIDED ON REQUEST. THESE STEAM TRAPS ARE SUITABLE FOR MAX. BACK PRESSURE 60% OF THE INLET PRESSURE & THE MIN. PRESSURE DIFFERNTIAL OF 0 PSI(0.7 KG/CM2

CERTIFICATE
ITEMS CAN BE SUPPLIED WITH CERTIFICATE OF MANUFACTURE AND TEST ON FORM III-C AS PER REGULATION 269 IBR.

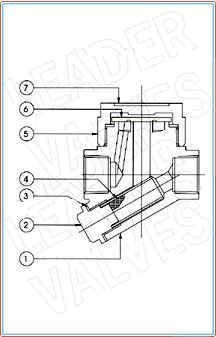

Standard Material Combination
S.No. PartName Carbon Steel to ASTM A105 Sainless steel to ASTM A182 Gr. F6a Sainless steel to ASTM A182 F304
1 BODY FORGED CARBON STEEL TO ASTM A105 S.S TO ASTM A 182 Gr. F6a S.S ASTM A182 Gr. F304
2 PLUG S.S TO ASTM A182 Gr. F6a S.S TO ASTM A 182 Gr. F6a S.S ASTM A 182 Gr. F304
3 GASKET C.A.F. TO B.S 1832 C.A.F TO B.S 1832 C.A.F TO B.S 1832
4 STRAINER TYPE 304 WITH 1 mm PERFORATIN TYPE 304 WITH 1 mm PERFORATION TYPE 304 WITH 1 MIN PERFORATION
5 COVER S.S. TO ASTM A 182 Gr. F6a S.S TO ASTM A182 Gr. F6a S.S TO ASTM A182 Gr.F304
6 VALVE DISC S.S. TO ASTM A 182 Gr. F6a S.S TO ASTM A182 Gr. F6a S.S TO ASTM A182 Gr.F304
7 NAME PLATE ALUMINIUM OR S.S ALUMINIUM OR S.S ALUMINIUM OR S.S
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
