LEADER DOUBLE POST HI-LIFT SAFETY VALVES

BACK


SPECIFICATIONS
DOUBLE POST HI-LIFT SAFETY VALVES, FLANGED ENDS AS PER RELEVENT TABLE OF BS 10.

CERTIFICATE
ITEMS CAN BE SUPPLIED WITH CERTIFICATE OF MANUFACTURE AND TEST ON FORM III-C AS PER REGULATION269 OF IBR.

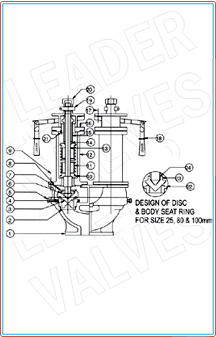

Standard Material Combination
S.No. PartName CAST IRON CAST CARBON STEEL
1 BODY C.I. TO IBR CLAUSE 86 TO 93 Gr.A C.S ASTM A216:93 Gr. WCB
2 BODY SEAT RING LUMINA TO Ni. Cu. ALLOY LUMINA TO Ni, Cu. ALLOY
3 VALVE DISC LUMINA TO Ni, Cu. ALLOY LUMINA TO Ni, Cu. ALLOY
4 REGULATING RING BRONZE TO IBR CLAUSE 2872 (a)(IV) Gr.B BRONZE TO IBR CLAUSE 282(a)(IV) Gr.B
5 REGULATING SCREW H.T. BRASS TO B6912FH1B1 H.T, BRASS
6 STEM LOCK NUT BRONZE TO IBR CLAUSE 282 (a)(IV) Gr.B BRONZE TO IBR CLAUSE 282(a)(IV) Gr. B
7 STEM BUSH BRONZE TO IBR CLAUSE 282(a)(IV) Gr.B BRONZE TO IBR CLAUSE 282(a)(IV) Gr. B
8 GASKET C.A.F. TO IS 2712 C.A.F TO IS 2712
9 BOLTS & NUTS CARBON STEEL TO BS 916 CARBON STEEL TO BS 916
10 SPRING DISC C.I. TO IBR CLAUSE 86 TO 93 Gr.A C.I TO IBR CLAUSE 86 TO 93 Gr.A
11 SPRING C.S. TO IBR CLAUSE 307-314 C.S TO IBR CLAUSE 307-314
12 SPRING CHAMBER C.I. TO IBR CLAUSE 86 TO 93 Gr.A C.I TO IBR CLAUSE 86 TO 93 Gr.A
13 STEM 13% Cr. S.S TO ASTM A182 Gr. F6a 13% Cr. S.S. TO ASTM A182 Gr. F6a
14 SPRING ADJSTING SCREW BRONZE TO IBR CLAUSE 282(a)(IV) Gr.B BRONZE TO IBR CLAUSE 282(a)(IV) Gr.B
15 COVER BUSH BRONZE TO IBR CLAUSE 282(a)(IV) Gr.B BRONZE TO IBR CLAUSE 282(a)(IV) Gr.B
16 COVER C.I. TO IBR CLAUSE 86 TO 93 Gr.A C.I TO IBR CLAUSE 86 TO 93 Gr.A
17 NUTS CARBON STEEL TO BS 916 CARBON STEEL TO BS 916
17 STUDS CARBON STEEL TO BS 916 CARBON STEEL TO BS 916
18 HANDLE C.I TO IBR CLAUSE 86 TO 93 Gr.A C.I TO IBR CLAUSE 86 TO 93 Gr.A
19 CAP COTTER BRONZE TO IBR CLAUSE 282(a)(IV) Gr.B BRONZE TO IBR CLAUSE 282(a)(IV) Gr.B
20 HOUSING CAP C.I TO IBR CLAUSE 86 TO 93 Gr. A C.I. TO IBR CLAUSE 86 TO 93 Gr.A
21 SET SCREW BRASS BRASS
24 LOCKING SCREW BRASS BRASS
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
