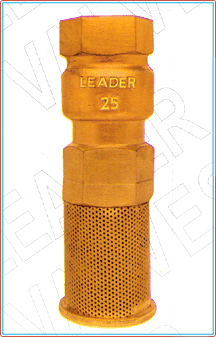

Cu-ALLOY FOOT VALVES PN 6

BACK




SPECIFICATIONS
INTEGRAL SEAT, BRASS STRAINER, INLET END HAVING SCREWED FEMALE BSP PARALLER THREADS TO BS 21. OTHER FRONS OF THREADS CAN BE PROVIDED ON REQUEST.

PRESSURE-TEMPERATURE RATINGS
METAL TO METAL SEAT
10 bar AT- 10°C TO 100°C
7bar AT-180°C
RESILIENT SEAT (RESTRICTED TO MAX. TEMP. OF 100°C)
16 bar FROM- 10°C TO 100°C

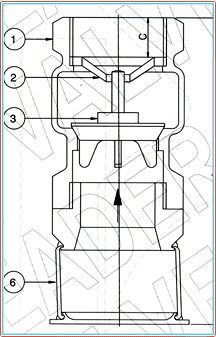

Standard Material Combination
S.No. PartName GUN METAL
1 BODY G.M EN 1982 Gr. CC491K
2 DISC GUIDE G.M EN 1982 Gr. CC491K
3 DISC G.M EN 1982 Gr. CC491K
4 O-RING RUBBER IS 5192
5 SPRING Phos.BRONZE / STAINLESS STEEL IS 7608 / BS 2056 EN 58A
6 STRAINER ELEMENT BRASS SCREEN HAVING Imm f PERFORATIONS
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
