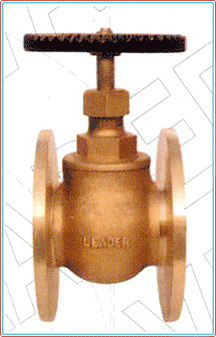

Cu-ALLOY GLOBE VALVES PN 25/B, CLASS 150/B

BACK



SPECIFICATIONS
SCREWED IN BONNET, INSIDE SCREW, RISING STEM, INTEGRAL SEAT, RENEWABLE DISC, FLANGED ENDS, ASPER BS45.4 PN 25/BS 10 TABLEF.

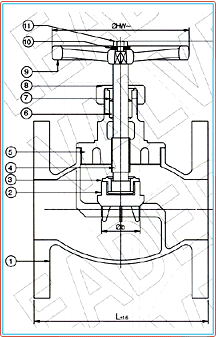

Standard Material Combination
S.No. PartName GUN METAL
1 BODY G.M EN 1982 Gr. CC491K
2 DISC G.M EN 1982 Gr. CC491K
3 STEM NUT G.M./BRASS EN 1982 Gr. CC491K/CZ122 OF BS 2872 OR 2874
4 STEM BRASS ROD CZ114 OF 2872 OR 2874
5 BONNET G.M./BRASS EN 1982 Gr. CC491K/ BS 2872 CZ 122
6 GLAND PACKING TO SUIT SERVICE CONDITIONS
7 GLAND BRASS CZ 122 OF BS 2872 OR 2874
8 GLAND NUT G.M./BRASS EN 1982 Gr. CC491K/ CZ122 OF BS 2872 OR 2874
9 HANDWHEEL C.I/STEEL EN 1561 Gr. GJL200/ ANY GRADE
10 WASHER CARBON STEEL ANY GRADE
11 SET SCREW CARBON STEEL ANY GRADE
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
