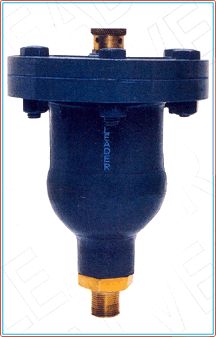

CAST IRON SINGLE AIR RELEASE VALVES PN 10

BACK

SPECIFICATIONS

SINGLE BALL TYPE, INLET END HAVING SCREWED MALE BSP TAPER THREADS IN ACCORDANCE WITH BS21

DESING FEATURES

AUTOMATICALLY RELEASES AIR ACCUMULATED UNDER PRESSUREAT THE SUBMITS OF WATER MAINS.

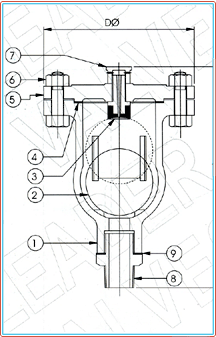

**Standard Material Combination**
S.No.	PartName	Cast Iron EN 1561 Gr. GJL200
1	BODY	C.I. EN 1561 Gr. GJL200
2	BALL	RUBBER COATED WOODEN BALL
3	NIPPLE (RUBBER COATED)	G.M. EN 1982 Gr. CC491K
4	GASKET	SYNTHETIC RUBBER IS 638 TYPE B
5	COVER	C.I. EN 1561 Gr. GJL200
6	BOLTS & NUTS	CARBON STEEL BS 916
7	CAP	G.M. EN 1982 Gr. CC491K

NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
