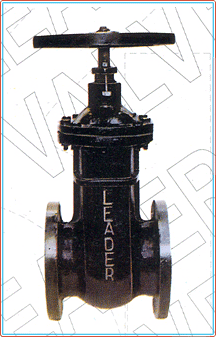

CAST IRON SLUICE VALVES-14846:2000 PN1, PN1.6

BACK




SPECIFICATIONS

BOLTED BONNET, INSIDE SCREW & NON RISING STEM, FLANGED ENDS AS PER TABLE 4 OF IS780 (FOR SIZES 50mm & 65mm) & IS1538 (FOR SIZES ABOVE 65mm), UNLESS OTHERWISE SPECIFIED IN THE CONTRACT.


MAX. PERMISSIBLE WORKIG PRESSURE

NOMINAL PRESSURE PN1
1MPa FOR WATER SUPPLY UPTO45°C

NOMINAL PRESSURE PN1.6
1.6MPa FOR WATER SUPPLY UPTO45°C


Standard Material Combination
S.No. PartName Cu. ALLOY TRIM S.S TRIM
1 BODY C.I TO IS 210 Gr. FG. 200 C.I TO IS 210 Gr. FG. 200
2 BODY SEAT FACING LEADED TIN BRONZE TO IS318Gr. LTB2 S.S TO IS 1570 (PART 5) Gr. 20Cr. 12
3 WEDGE FACING LEADED TIN BRONZE TO IS318Gr. LTB2 S.S TO IS 1570 (PART 5) Gr.20Cr. 12
4 WEDGE C.I TO IS 210 Gr. FG. 200 C.I TO IS 210 Gr. FG. 200
5 WEDGE NUT LEADED TIN BRONZE TO IS318Gr. LTB2 H.T. BRASS TO IS 320Gr. HT2
6 STEM H.T. BRASS TO IS 6912Gr. FHTB1 S.S TO IS 6603Gr. 04Cr. 18Ni. 10
7 BONNET GASKET COMPRESSED FIBRE TO 2712Gr.C OR RUBBER TO IS 638TY COMPRESSED FIBRE TO IS 2712Gr.C OR RUBBER TO IS 638TYPE B
8 BONNET C.I TO IS 210 Gr. FG. 200 C.I. TO IS 210 Gr. FG. 200
9 NUTS CARBON STEEL TO 1363 CLASS 4 CARBON STEEL TO IS 1363 CLASS 4
9 BOLTS CARBON STEEL TO IS 1363 CLASS 4.6 CARBON STEEL TO IS 1363 CLASS 4.6
10 THRUST PLATE C.I. TO IS 210 Gr. FG. 200 C.I. TO IS 210 Gr. FG. 200
11 STUFFING BOX GASKET COMPRESSED FIBRE TO IS 2712Gr.C OR RUBBER TO IS 63 COMPRESSED FIBRE TO IS 2712Gr.C OR RUBBER TO IS 638TYPE B
12 STUFFING BOX C.I TO IS 210 Gr. FG.200 C.I TO IS 210 Gr. FG. 200
13 GLAND PACKING JUTE & HEMP TO IS 5414 OR RUBBER TO IS 638TYPE B JUTE & HEMP TO IS 5414 OR RUBBER TO IS 638TYPE B
14 GLAND C.I. TO IS 210 Gr. FG. 200 C.I TO IS 210 Gr. FG. 200
15 HANDWHEEL C.I. TO IS 210 Gr. FG. 200 C.I. TO IS 210 Gr. FG.200
16 WASHER CARBON STEEL (ANY GRADE) CARBON STEEL (ANY GRADE)
17 SET SCREW OR NUT C.S. TO IS1363 CL. 4.6 OR IS1363 CL.4 C.S TO IS1363 CL. 4.6 OR IS1363 CL.4
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
