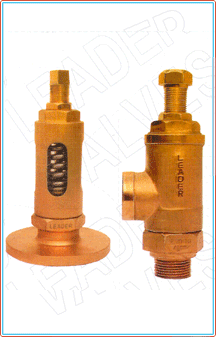

BRONZE SPRING LOADED RELIEF VALVE

BACK


CERTIFICATE
ITEMS CAN BE SUPPLIED WITH CERTIFICATE OF MANUFACTURE AND TEST ON FORM III-C AS PER REGULATION 269 OF IBR.

APPLICATION
Relief Valves are meant for use on Liquid service(i.e. for incompressible fluids). The maximum set pressure for which these valves can be supplied is 150 psig (10.34bar). Recommended maximum working pressure is 435F(225C).

These valves start  opening at the set pressure & open in direct proporation to the increase in pressure order the set pressure. These valves require above 20% over pressure to open wide. As the pressure drop it start to close and shut at approximately the set pressure.

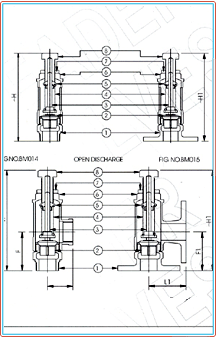

Standard Material Combination
S.No. PartName BRONZE
1 BODY BRONZE EN 1982 Gr. CC491K
2 DISC BRONZE EN 1982 Gr. CC491K
3 STEM BRASS ROD CZ 114 OF BS 2872 OR 2874
4 SPRING CARBON STEEL IBR CLAUSE 307
5 SPRING DISC BRONZE EN 1982 Gr. CC491K
6 SPRING CHAMBER BRONZE EN 1982 Gr. CC491K
7 LOCKING NUT BRONZE EN 1982 Gr. CC491K
8 ADJUSTING SCREW BRONZE EN 1982 Gr. CC491K
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
