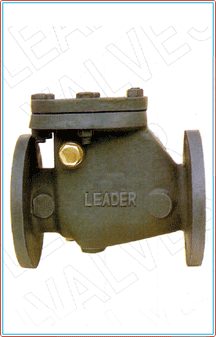

REFLUX VALVES  - [CAST IRON REFLUX VALVES - IS 5312 PN 0.6, PN 1.0, ]

BACK




SPECIFICATION
BOLTED COVER, FLANGES AS PER IS: 1538

SIZE OF VALVE               NOMINAL PRESSURE
(in mm)                                (in MPa)
50 TO 125                             1.6
150 TO 300                           1.0
350 TO 500                           0.6






Standard Material Combination
S.No. PartName Cu. ALLOY TRIM S.S TRIM
1 BODY C.I. TO IS 210 Gr. FG. 200 C.I. TO IS 210 Gr. FG. 200
2 BODY SEAT RING LEADED TIN BRONZE TO IS 318 LTB2 S.S TO IS 6603 Gr. 04 Cr. 18 Ni. 10
3 DISC FACE LEADED TIN BRONZE TO IS 318 LTB2 OR SYNTHETIC RUBB S.S. TO IS 6603 Gr. 04 Cr. 18 Ni. 10 OR SYNTHETIC
4 DISC C.I. TO IS 210 Gr. FG. 200 C.I. TO IS 210 Gr. FG. 200
5 HINGE C.I. TO IS 210 Gr. FG. 200 OR C.S. TO IS 1030 C.I. TO IS 210 Gr. FG. 200 OR C.S TO IS 1030
6 HINGE PIN HT BRASS TO IS 6912 FHTB2 OR IS 320 HT2 HT BRASS TO IS 6912 FHTB2 OR IS 320 HT2
7 GASKET COMPRESSED FIBRE BOARD TO IS 2712 Gr. C COMPRESSED FIBRE BOARD TO IS 2712 Gr. C
8 COVER C.I. TO IS 210 Gr. FG. 200 C.I. TO IS 210 Gr. FG. 200
9 NUTS IS 1363 CLASS-4 IS 1363 CLASS- 4
9 STUDS IS 1363 CLASS-4.6 IS 1363 CLASS- 4.6
10 DISC NUT IS 1363 CLASS-4 IS 1363 CLASS-4
11 WASHER LEADED TIN BRONZE TO IS 318 LTB2 S.S TO IS 6603 Gr. 04 Cr. 18 Ni. 10
12 PLUG FOR HINGE PIN LEADED TIN BRONZE TO IS 318 LTB2 LEADED TIN BRONZE TO IS 318 LTB2
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.



LEADER

CAST IRON REFLUX VALVES - IS 5312 PN 0.6, PN 1.0
